Hot wax 3D printer head mount

This Aluminium Hot Wax 3D Printer head mount incorporates 2 hot wax reservoirs and peristaltic pumps.
The unit is heated by elements inserted through holes in the body.
The printer head itself fits in the pocket at 90 degrees to the reservoirs.

Ally Racks & Regent cover

The Regent cover is made from polypro.
Designed so the robot can open & close the lids to gain access to 4 separate containers.
This drasticlly reduces evaporation problems.
The aluminium racks are designed to fit specific vials. Aluminium has been used to help maintain a constant temp when on the system.

Sensor Housing

This sensor housing when supplied by the manufacture is made of plastic (the black part on the left).

Working well until you add a little heat. My customer kept melting them and obviously getting false readings.

The part is 10mm dia and 12mm long now made of ally 6082 T6.

Bike Calliper Bracket

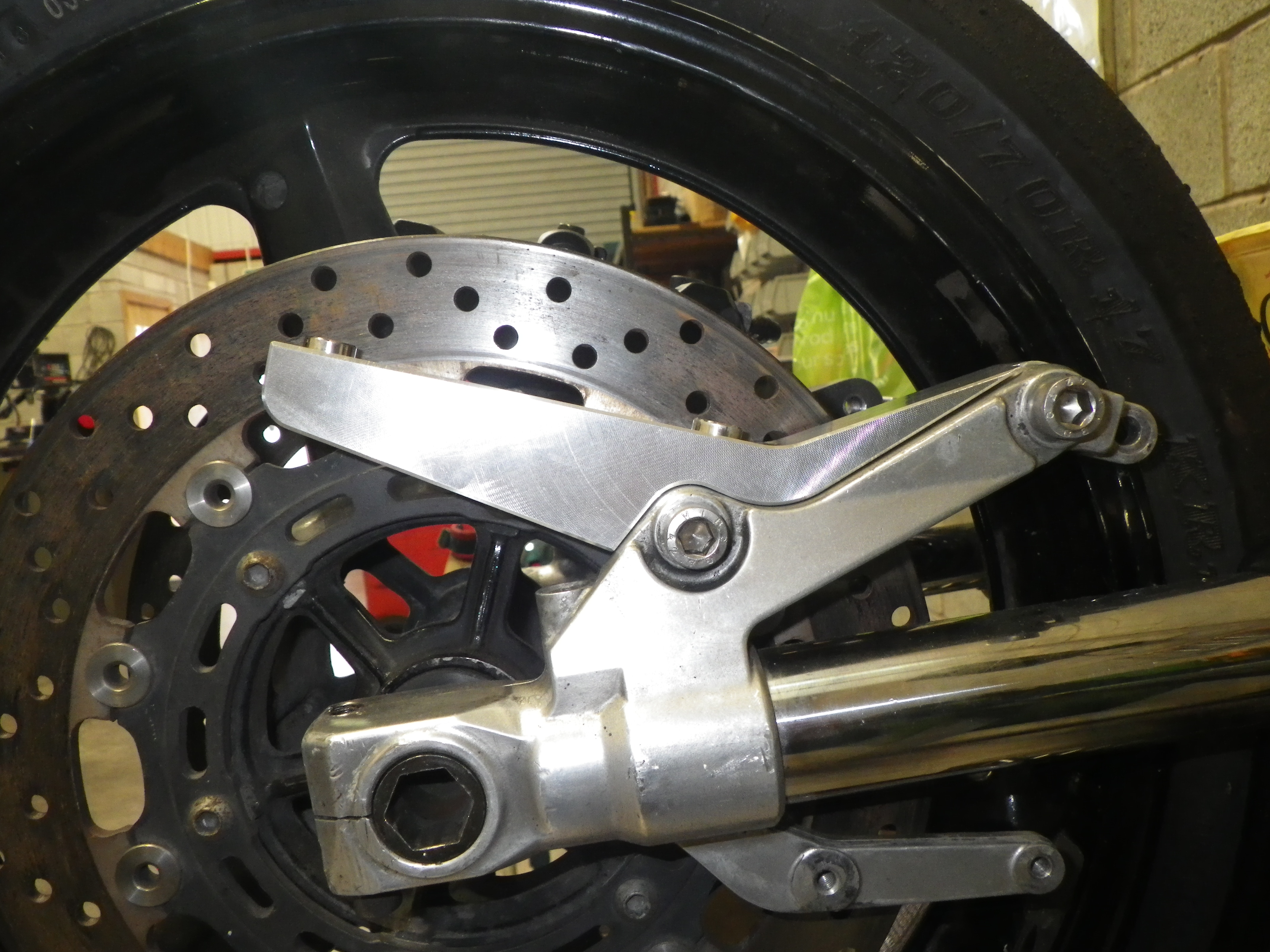

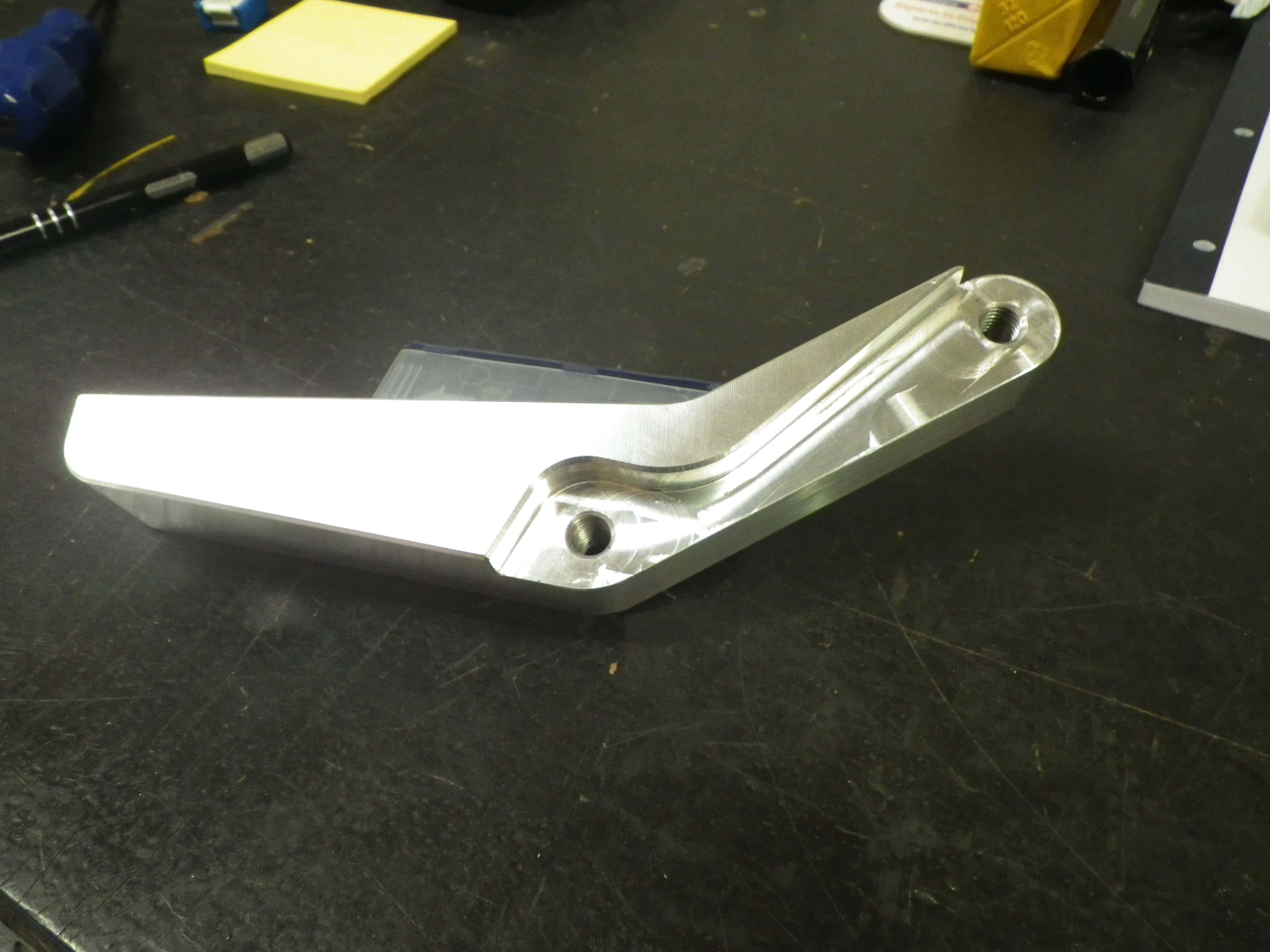

• Asked to design & manufacture brackets to fit radially mounted callipers to axle mounting fork legs. At the moment they are being tested. If it all works, we will lighten them up a bit with some pockets.

Square Thermowell

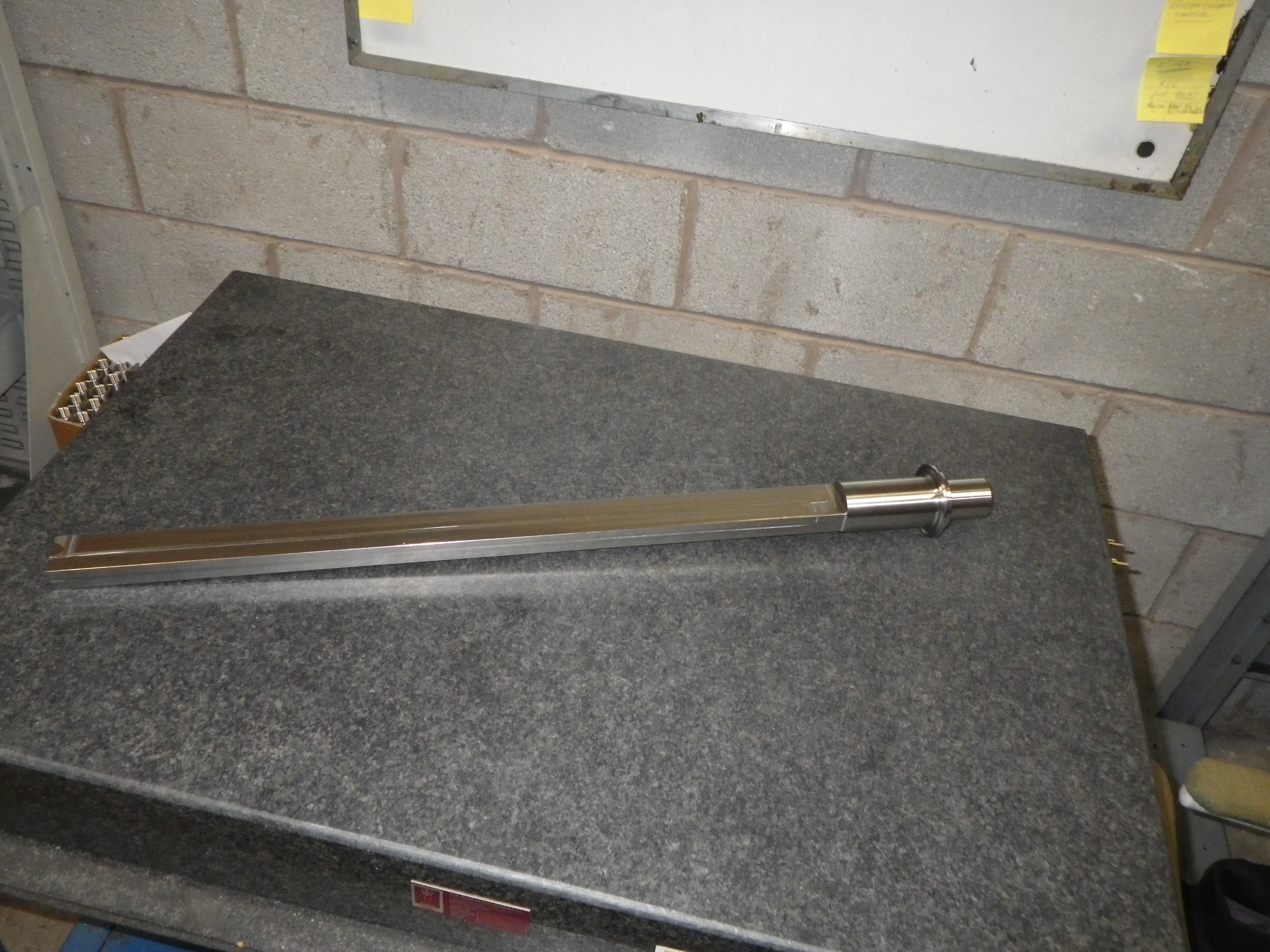

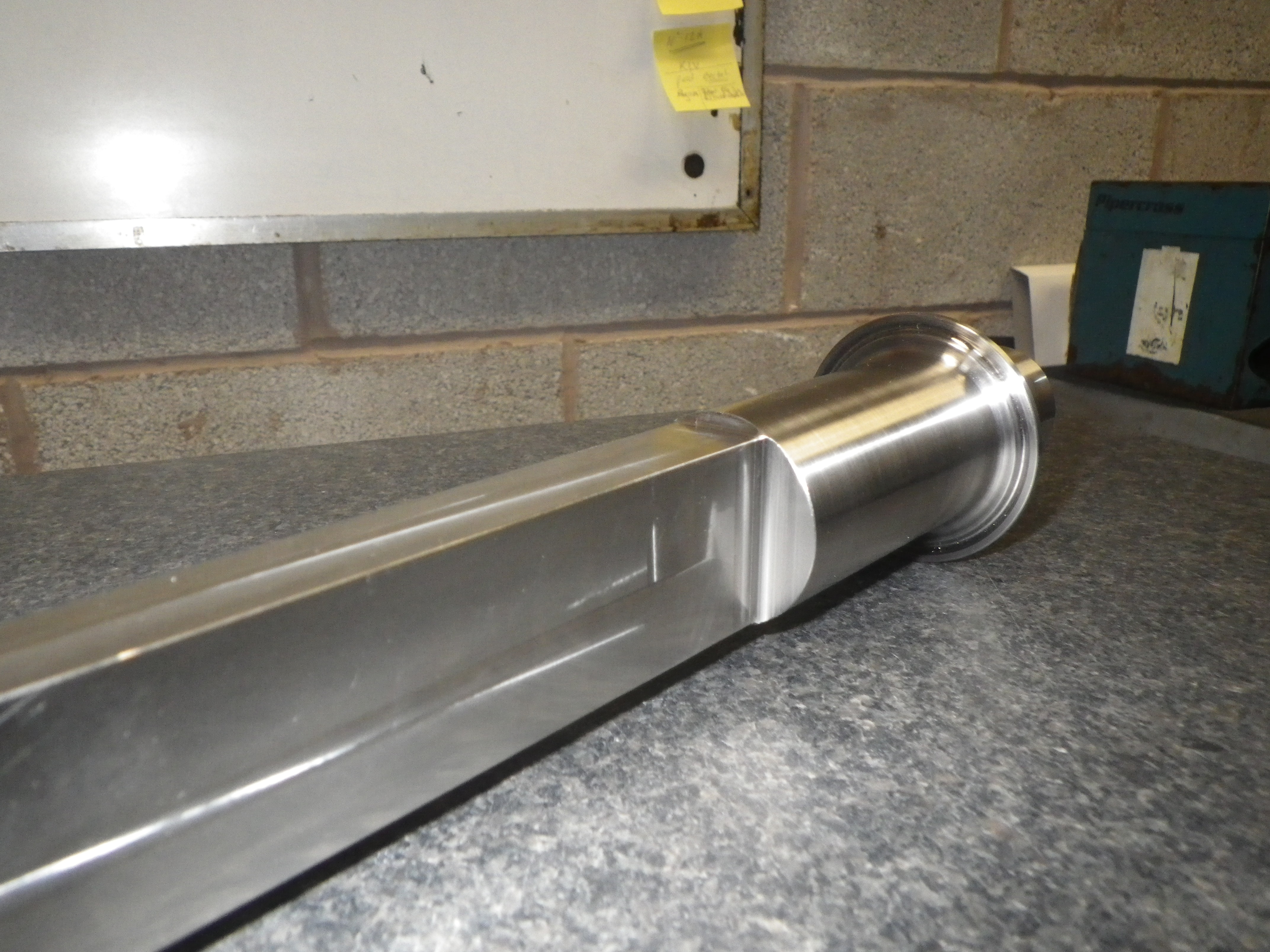

Made from stainless steel 316L & 757mm long.

Camera brackets

These little camera brackets are only 35mm long & can be linked together to enable perfect camera positioning.

they have been made from 6082 aluminium.

Racks & Location Plates

This customer required a means of loading Microfuge tubes on an automated machine. I designed an aluminium location plate which fixes to the machine work table. Then the polypro rack which sit in the plate. Each of the 96 holes can be individually  identified by the letter number grid. All the racks are identical and can be removed and replaced in the plates so as the holes are always in the same place relative to the machine.

CASTING REPLACEMENT

This one was a request to produce a machined part to replace

a casting.

3/4″ Compresion Fitting

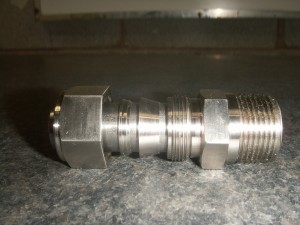

3/4″ Dia Compression fitting only interesting thing, completely made from Hastalloy C276.

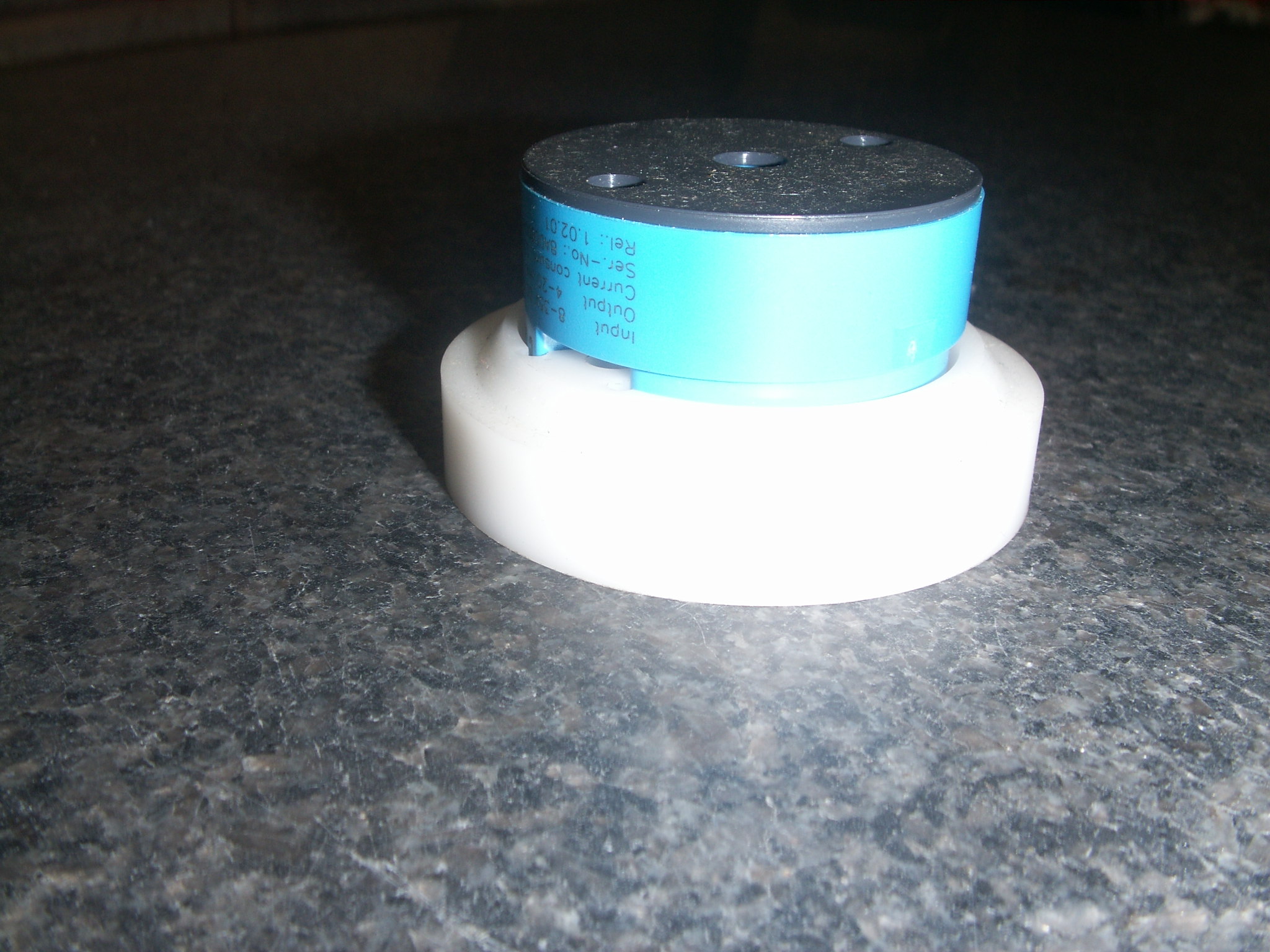

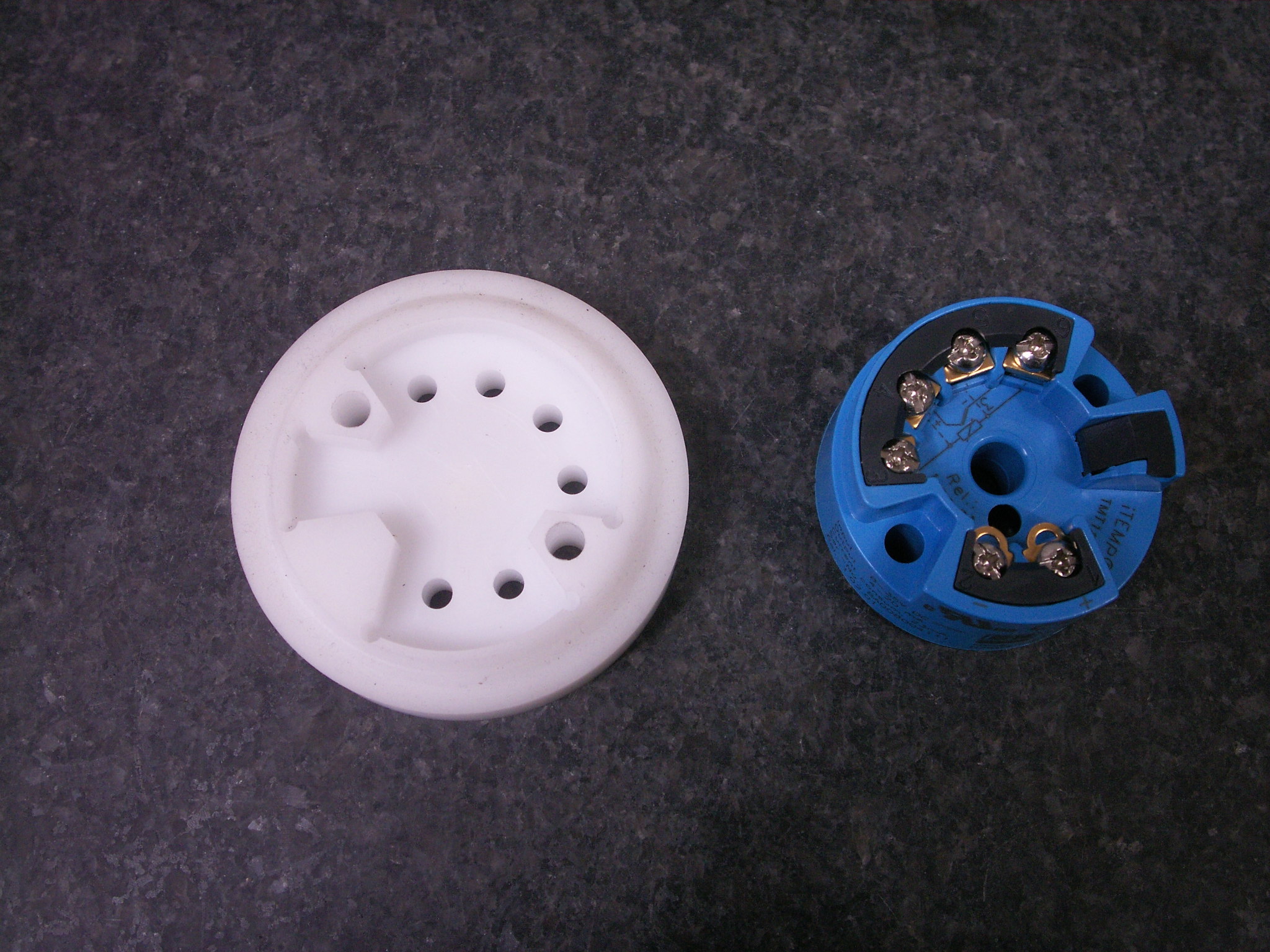

Manufacture socket to electicaly test instrument
