Racks & Location Plates

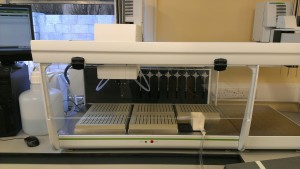

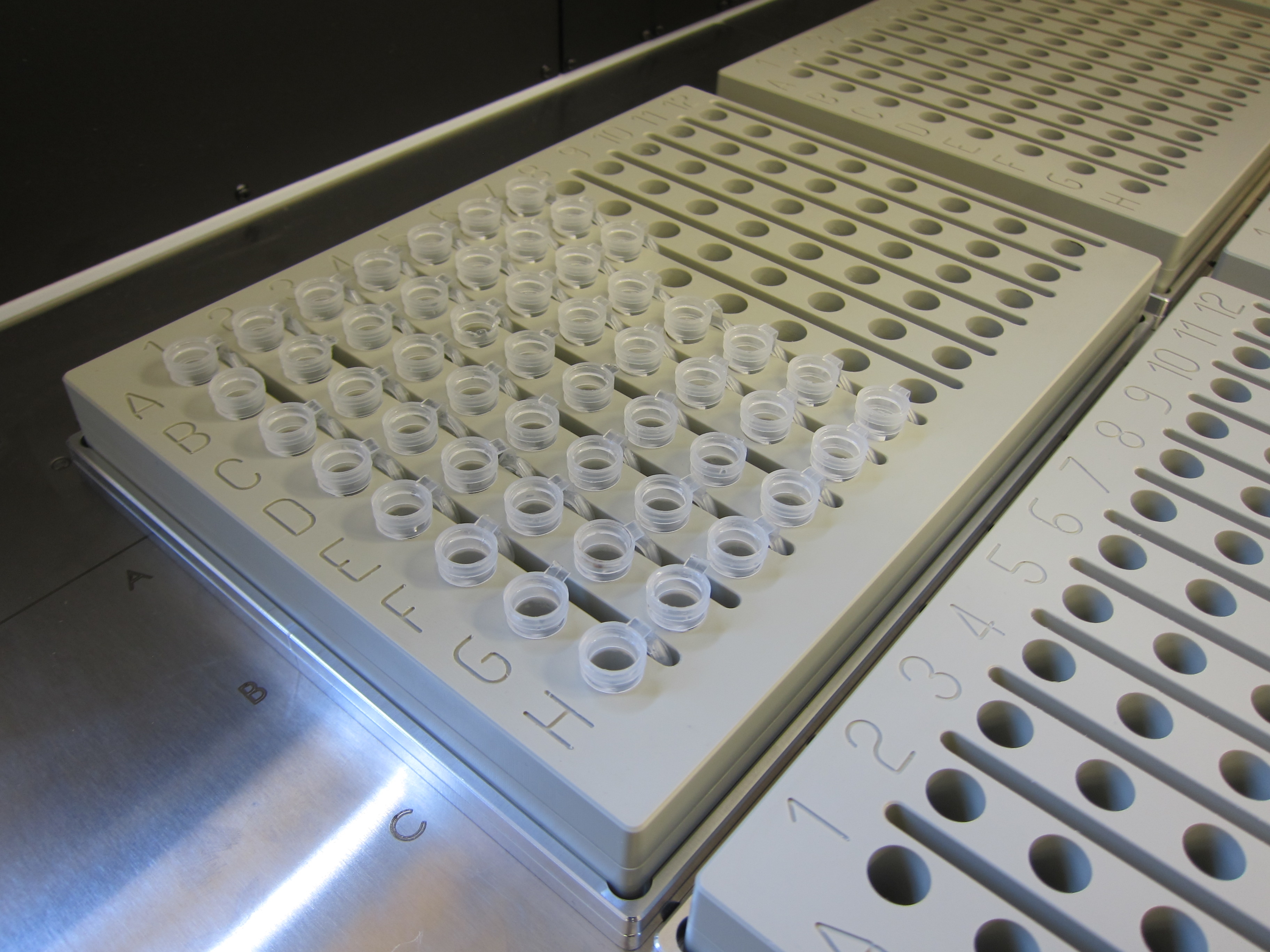

This customer required a means of loading Microfuge tubes on an automated machine. I designed an aluminium location plate which fixes to the machine work table. Then the polypro rack which sit in the plate. Each of the 96 holes can be individually  identified by the letter number grid. All the racks are identical and can be removed and replaced in the plates so as the holes are always in the same place relative to the machine.
